Product List - Distillation Kits

Large 2 Litre Glass Essential Oil Still Distillation Kit

£375.00

This is a very high precision distillation kit, made with Borosilicate glass. It includes everything you need to start distillation and making your own oils at home or in your own workshop, including a step by step guide to help you distil your own beautiful oils.

This distillation kit can be heated with either a single ring electric heater or gas burner, both types are available from NHR

The kit consists of:

* Full user instructions with step by step guide and photos on using your kit, with explanations about oil extractions and safety instructions

* 2L glass boiling flask, flat base, 2-neck, 24/40 sized ground glass joints

* 2L glass biomass flask, 24/40 joint below and 40/38 joint on top for easy loading/unloading of biomass

* Glass connector still head (steam transfer tube) with 40/38 and 24/40 male ground joints (thermometer adaptor port is on the top)

* Glass coil condenser, 300mm effective length, 24/40 sized ground glass joints, with a spherical joint that allows a wide range of alignment without risk of breakage or loss of seal integrity.

* Glass essential oil receiver/separator funnel with 24/40 joint at top and valve at base

* Hoses 150cm x 2 for condenser water (internal diameter 0.5cm)

* Keck clips x4 to hold condenser, still head, and receiver together

* Glass stopper

* Thermometer adapter

* Joint clamps x2

* 0~200°C thermometer

* Two metal laboratory clamps

* Metal laboratory base and vertical stand

* Silicon grease

(PLEASE NOTE: May vary from image. The electric heavy duty 2000w heater or gas burner is NOT included, but can be ordered separately)
We also have optional accessories for sale:
1. Water pump to cool the condenser
2. Bucket for water pump, water and ice
3. Heat diffuser mat to protect 2L glass boiling flask
4. 2000w electric heater or gas burner
.

*Apologies - gift wrap not available for this item*



Quantity:

Beautiful 5 Litre Copper Essential Oil Still Distillation Kit

£490.00


This beautiful, 5L copper essential oil still is hand crafted in Portugal.

This still is perfect for distilling very high quality organic essential oils.

Thermometer and distilling instructions are included, as are cleaning and maintenance instructions.

The copper still can be heated with either a single ring electric heater or gas burner, both types are available from NHR.


Dimensions (approx.)
Complete still: Height 65cm, Width 50cm, Depth 20cm.
Bio chamber: Height 200mm, Diameter 140mm, Width (inc. hinge) 190mm; Condenser pot: Height 240mm, Width 170mm; Pipe: 200mm; Boiling chamber: Height 230mm, Width 230mm; Head pipe: Length 400mm, Height 260mm.

Weight: 4.5kg

Copper thickness: 1mm

Materials: Copper with brass handles.

Our copper stills are 100 % lead free. Soldered using copper, brass, 100% lead-free tin or silver. These types of solder are perfectly safe and are commonly used for soldering products that are then used for food and beverages.

Accessories not included: Hose for water circulation and oil receiver/separator.
Hose requirements: Food grade silicone; 1-2mm thick; Length 1.5m; Outer diameter of smallest outlet pipe 12mm; Outer diameter of larger outlet pipe 15mm. (Acquire tubing to fit smaller pipe and should stretch over the larger pipe outlet).

*Apologies - gift wrap not available for this item*

See below link to Instructions, which also include Safety Tips, Care and Maintenance.


Copper still instructions ~ Download
Quantity:

Beautiful Very Large 20 Litre Copper Essential Oil Still Distillation Kit

£545.00


This beautiful, very large 20L copper essential oil still distillation kit is hand crafted in Portugal.


This larger still is perfect for distilling very high quality organic essential oils.

The still can be heated with either a single ring electric heater or gas burner, both types are available from NHR.

Dimensions (approx.)
Complete still: Height 84cm, Length 72cm, Width 32cm.
Bio chamber: Height 265mm, Diameter 175mm, Width (inc. hinge) 240mm; Condenser pot: Height 335mm, Diameter 240mm; Pipe: 260mm; Boiling chamber: Height 330mm, Width 330mm; Head pipe: Length 560mm, Height 340mm.

Weight: 10kg

Copper thickness: 1.2mm

Materials: Copper with brass handles.

Our copper stills are 100 % lead free. Soldered using copper, brass, 100% lead-free tin or silver. These types of solder are perfectly safe and are commonly used for soldering products that are then used for food and beverages.

Accessories not included: Hose for water circulation and oil receiver/separator.
Hose requirements: Food grade silicone; 1-2mm thick; Length 1.5m; Outer diameter of smallest outlet pipe 12mm; Outer diameter of larger outlet pipe 15mm. (Acquire tubing to fit smaller pipe and should stretch over the larger pipe outlet).

*Apologies - gift wrap not available for this item*


Copper still instructions ~ Download
Quantity:

Instructions sheets ONLY for 2 Litre Glass Essential Oil Still Distillation Kit

£9.95
Basic Instructions Sheets only with Photos for 2 Litre glass distillation kit

Please note if you have bought the glass distillation kit, you will receive the instructions with this, there is no need to buy the instructions.

Full user instructions with step by step guide and photos on using your 2L glass distillation kit. With explanations about oil extraction and safety instructions.

Follow this guide to make your own beautiful essential oils. This guide is for the 2L glass distillation kit we sell only.


Quantity:

Distillation Kit Water Pump

£25.50

Distillation Kit Water Pump

This water pump circulates the cold water around the distillation kit condenser.

Specifications:
Flow rate: 600l/h
Max pump height: 0.7m
Power: 8w
Size: 55 x 45 x 48mm

(Pump may vary from photo)




Quantity:

Distillation Kit 2.5 Litre Plastic Bucket

£6.50

Distillation Kit 2.5 Litre Plastic Bucket

This 2.5L plastic bucket is to contain the water pump and cold water, which is used to circulate around the condenser of the NHR Organic Oils Distillation Kit.

Dimensions: H=140mm, top diam=190mm, base diam=155mm


Quantity:

Distillation Kit Steel Mesh Heat Diffuser Mat - 18cm

£17.50

Distillation Kit Steel Mesh Heat Diffuser Mat - 18cm.

This will protect the 2L glass boiling flask from direct heat from the heater hob to stop the glass shattering.

(Diffuser may vary from photo)



Quantity:

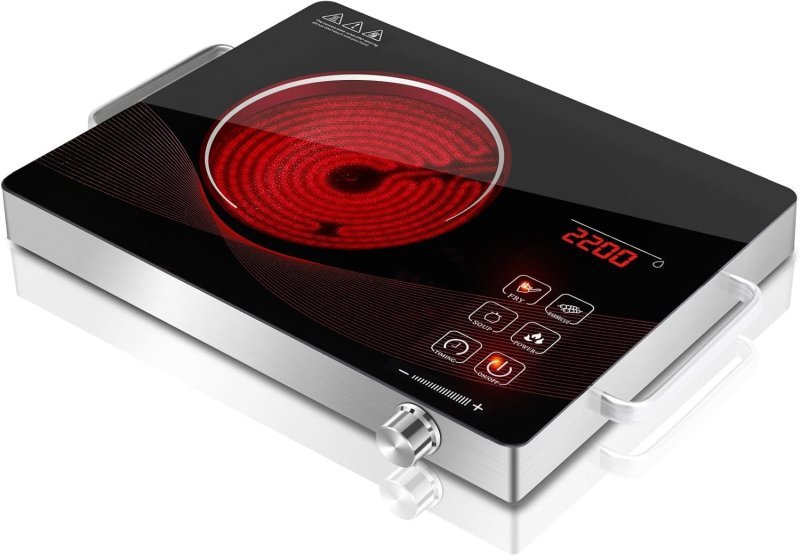

2000w Distillation Kit Ceramic Hob Heater

£99.00

2000w Distillation Kit Ceramic Hob Heater

NHR Organic Oils Distillation Kit 2000w Hob Heater, for distillation kits.

(Heater may vary from photo)



Quantity:

Essential Oil Receiver Separator

£75.00

This beautifully designed receiver is an extremely useful piece of equipment which separates the essential oil and hydrosol water produced during the distilling process.

As the distillate output fills the glass tube, the essential oil accumulates at the top of the glass tube and the hydrosol flows out of the copper funnel tube, you then use a pipette to extract the essential oil that is floating on top of the water. A pipette is included with the Separator.

Assembly and Instructions for use: Lightly grease the rubber rings with any oil, then attach the glass tube making gentle circular movements.
Once assembled, place the essential oil receiver separator below the distillate outlet.


Assembled Dimensions:  Height: 18cm, Greatest width: 13cm.
Glass tube: Length: 14cm, Depth: 2cm

Materials: Copper funnel tube and base with rubber rings. Glass tube. Pipette included.

Please note: This design will not work with essential oils that have a higher density than water i.e. sink in water, rather than float e.g. Clove and Myrrh.


Quantity:

Large Cast Iron Single Gas Boiling Ring LPG For Distillation Kits - High Powered

£68.00

Heavy Duty Very Large Cast Iron Single Gas Boiling Ring LPG for Distillation Kits - High Powered - equivalent to 7.5 KW.

Please note you will need to provide your own gas supply e.g. LPG gas bottle.

Specifications

  • Enamelled steel
  • Size approx 41 cm wide x 42 cm deep & stands approx 18 cm high
  • Will run off any Propane Gas Bottle
  • Operating pressure: 28 - 37 mbar
  • Capacity: 7.5 Kw/h
  • Inlet: 8 mm nozzle



Quantity:

Portable Single Ring Gas Burner with carry case

£38.00

Portable Single Ring Gas Burner, equivalent to approx. 1.9kw. Comes with a carry case and standard 225g gas canister (Gas canister UK addresses ONLY).

Sorry, we are not permitted to send the gas canisters outside the UK, but they are standard 225g canisters and can be purchased very easily in most countries. We can send the single ring gas burner.


Quantity:
